1.Easy operation with powerful functions
Touch control screen with Icons enables easy operation all the time.
A variety of world main languages, users can change according to their requirement.
Three level passwords management, giving different rights to workers and management. Advanced settings can be realized with password permit.
Parameters programmable can meet the requirement of eggs in different days.
The relatively smaller egg holding capacity allows smaller hatcheries to freely arrange incubation plans.
2.Longer life incubators with less maintaining and spare parts
Selected metal materials with advanced anti-erosion ability for incubator trolleys and inside structures: SS304 stainless steel, 275g zinc coated steel, Hot-dip-galvanized steel, anodized or coated aluminum, allowing the metal parts can last at least 20 years.
Incubator body can be optional between premium quality FRP (fiber-glass material) skin, or cheaper material PPGI.
Water proof insulation material for wall panels, with density level leading the industry, allowing the incubators to remain perfect insulation even after many years using.
Selected electric parts, from world famous brands. Better quality means less maintaining and less spareparts to buy in the future.
3.Extraordinary performance and perfect hatching result
Powerful stirring fan, offering enough air speed inside the incubator,
Well designed air circulation system, and control system with decades experience, enabling a stable temperature field inside the incubators and hatchers.
Above design and functions give a proper environment for the eggs, producing more grade A day old chick.
4.Simple structure, easier installation, convenient maintenance

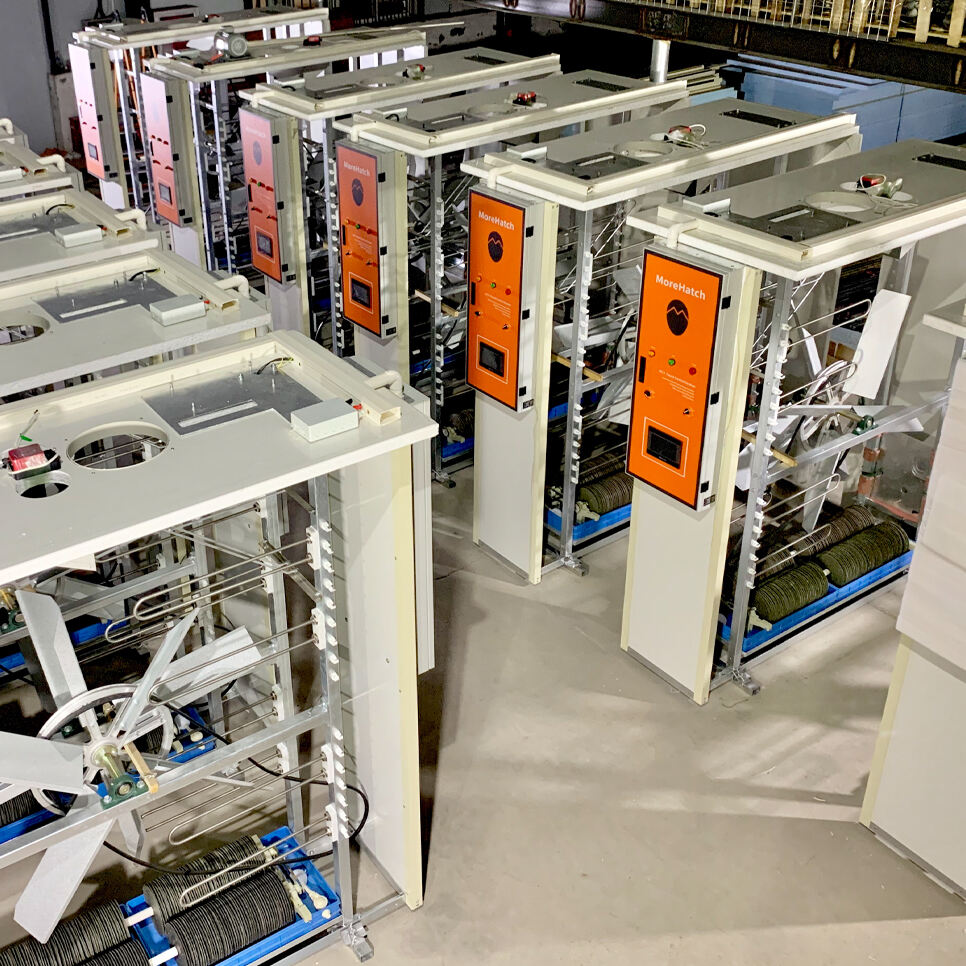

The central main structure can even be assembled in factory, greatly reducing installation work at customer’s hatchery if needed.
Model | DF192 setter | DC192 Hatcher |
Capacity | ||
Chicken Eggs / 150 egg tray | 19200 | 19200 |
Chicken Eggs / 84 egg tray | 21504 | 21504 |
Duck Eggs / 126 egg tray | 12096 | 12096 |
Turkey Eggs / 126 egg tray | 14112 | 14112 |
Large Goose Eggs / 63 egg tray | 7056 | 7056 |
Quail Eggs/ 442 egg tray | 63648 | 63648 |
Trolley Quantity | 4 | 4 |
Dimension (mm) | W3360xD2235xH2375 | |
Control System | Touch screen and LCD display | |
Heaters | Stainless steel electric heaters | |
Cooling | Air+Water | |
Egg Turning Method | Motor and Gear | |
Track | Hot Dip Galvanized Rail | |
Humidification | Disc Humidifier | |
Electricity | 380V 50HZ,5.8 KW |
