Incubators & Hatchers

Home >  Products >  Incubators & Hatchers

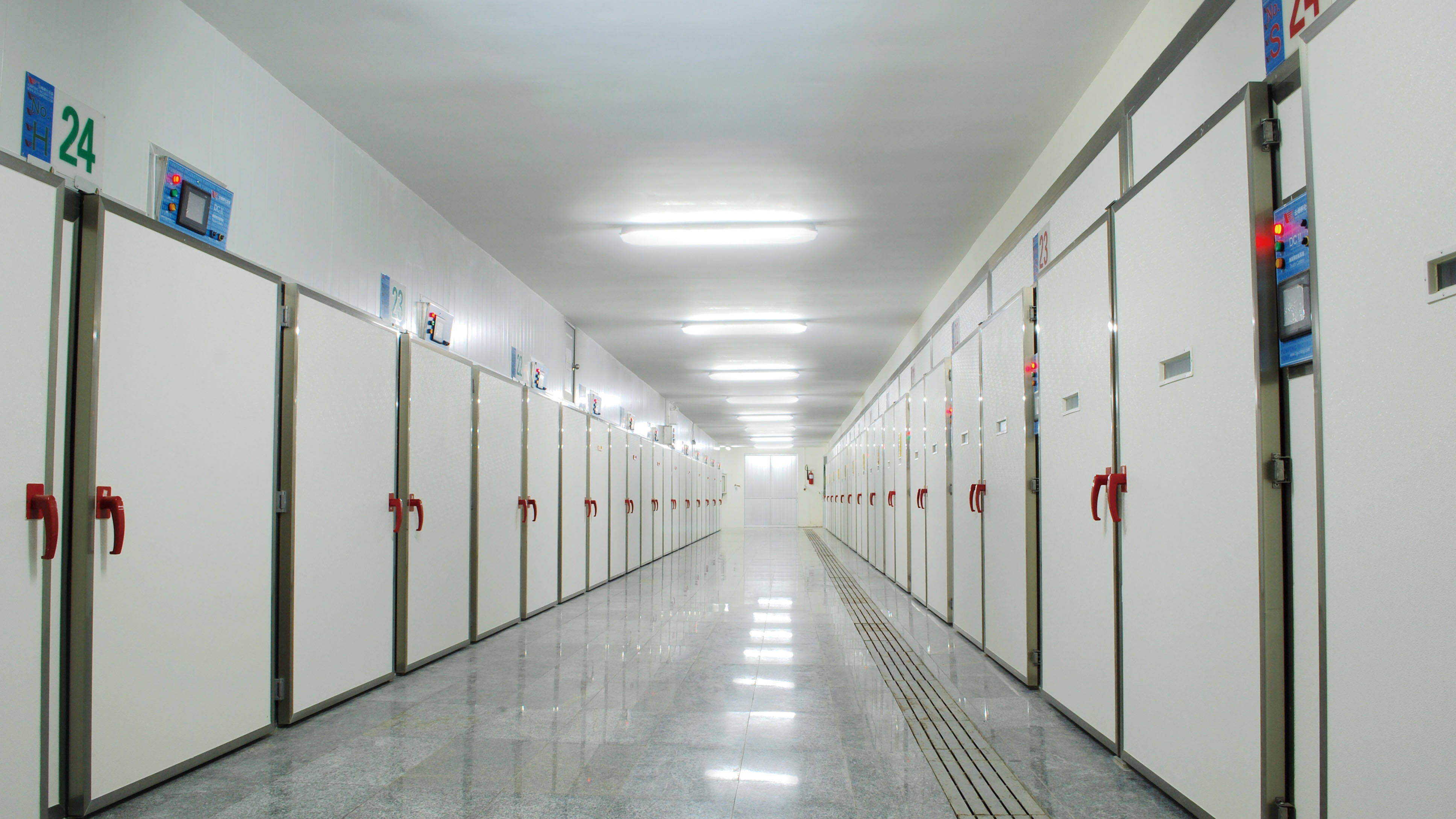

Tunnel incubators/hatchers

This multistage system can save over 60% of energy than common single-stage incubators, or over30% than other designs of multistage systems.



Benefits

Extraordinary energy saving

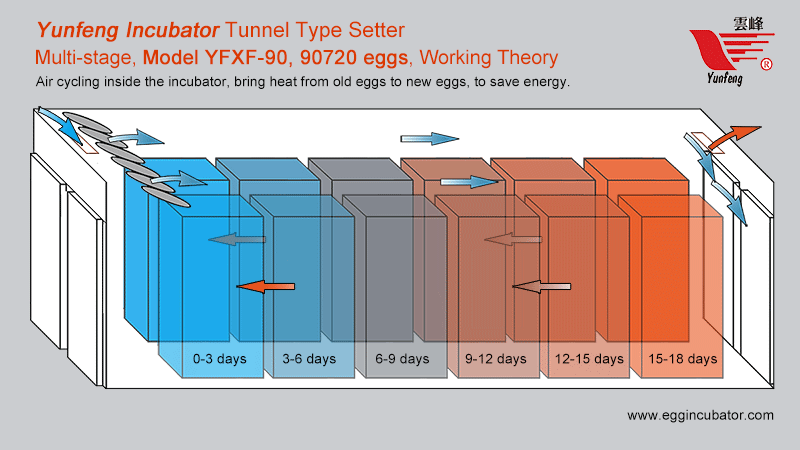

- This multi-stage system utilizes the heat from earlier loaded eggs to heat the newly loaded eggs.
- The O type air circulation, helps to create different temperature stages for eggs of different ages in the setter, and this is similar like the single stage changing-temperature incubation.
- This multistage system can save over 60% of energy than common single-stage incubators, or over 30% than other designs of multistage systems.
-Easy operation with powerful functions
- Touch control screen with icons enables easy operation all the time.
- A variety of world main languages, users can change according to their requirement.
- Three level passwords management, giving different rights to workers and management. Advanced settings can be realized with password permit.

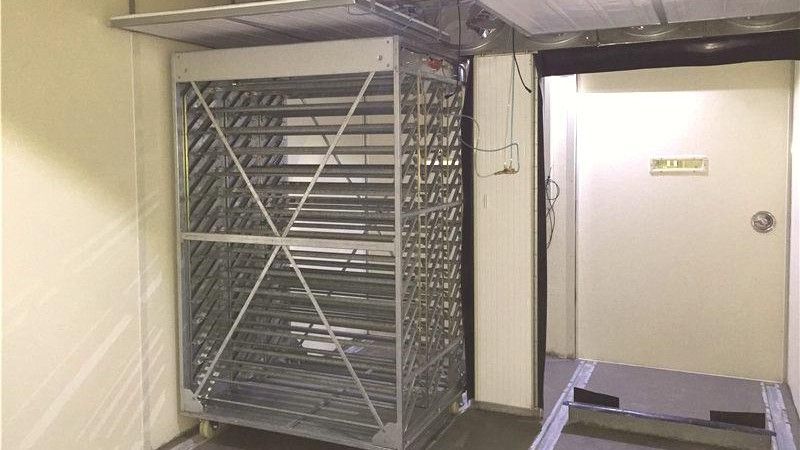

- Pneumatic egg turning system, every trolley comes with a turning cylinder, reliable and easier cleaning than mechanical egg turning system.Longer life with less maintaining and spare parts
- Longer life incubators with less maintaining and spare parts
- Selected metal materials with advanced anti-erosion ability for incubator trolleys and inside structures: SS304 stainless steel, 275g zinc coated steel, Hot-dip-galvanized steel, anodized or coated aluminum, allowing the metal parts can last for decades.
- The incubator body using premium quality FRP (fiber-glass material) skin, and the working life can be 5
decades above.
- Water proof insulation material for wall panels, with density level leading the industry, allowing the incubators to remain perfect insulation even after many years using.
- Selected electric parts, from world famous brands. Better quality parts reduced maintaining cost and spareparts cost in the future.



Technical specifications

Model XF90 XF75 XF60 XF45
Capacity (Chicken)
42 (84) egg tray 90720 75600 60480 45360
36 egg tray 77760 64800 51840 38880
77 egg tray (large egg) 83160 69300 55400 41580
63 egg tray (special breed) 102060 85050 68040 51030
Capacity (Duck/Turkey)
30 egg tray 51840 43200 34560 25920
Trolley Number 12 10 8 6
Max Power (KW) 7.8 7.8 6.8 5.2
Control System DC II Touch control system, 7” LCD display, all parts big brands
Heating Electric heating system
Cooling Water cooling system
Humidity Nozzle Sprayer
Electricity 380V/50HZ, 3 phase (other elecricity also available)
CO2 Included
Power Saving Module Optional
Egg turning Pneumatic by compressed air, every trolley comes a cylinder

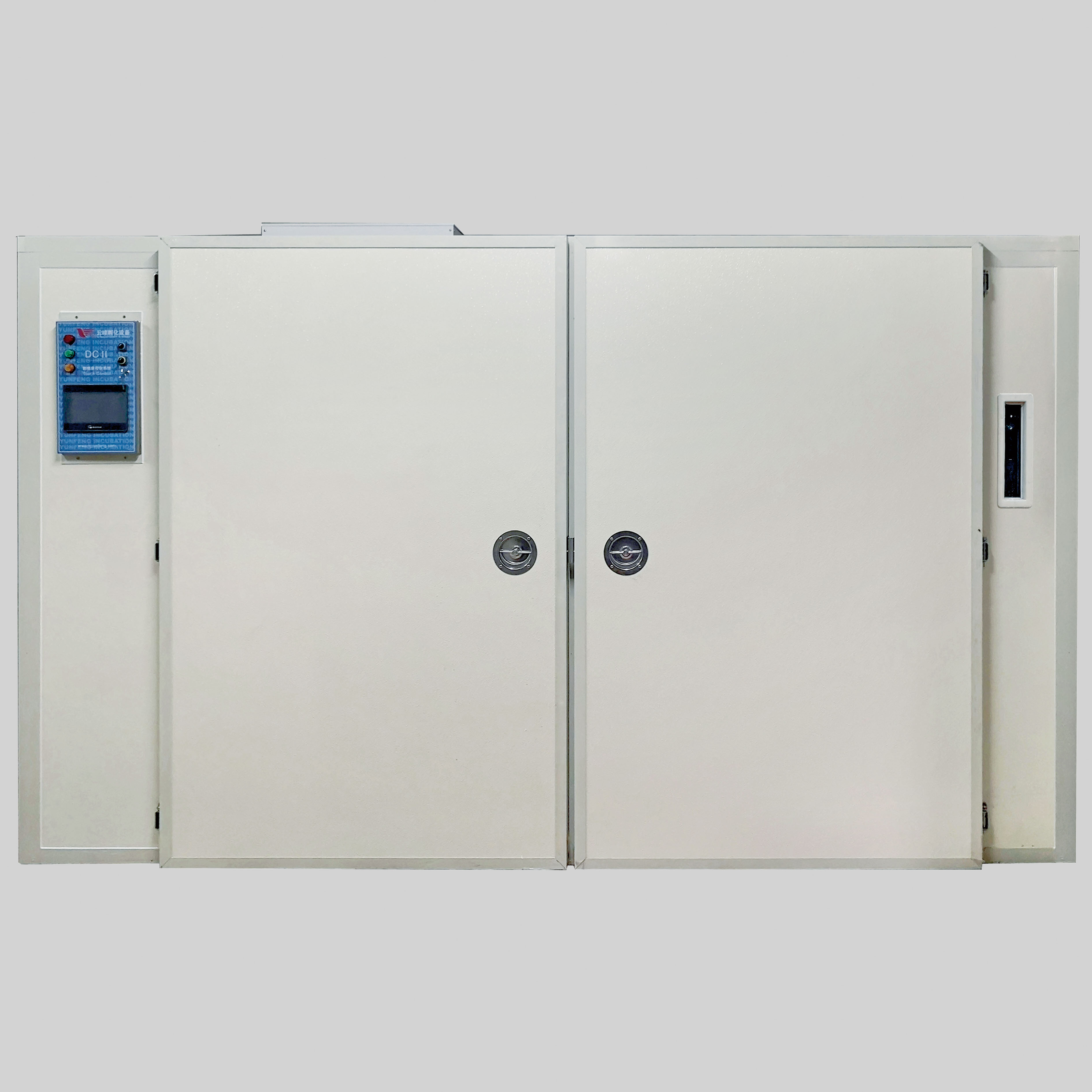

Model XC15A/D
Capacity (Chicken)
42 (84) egg tray 15120
36 egg tray 12960
77 egg tray (large egg) 13860
63 egg tray (special breed) 17010
Capacity (Duck/Turkey)
30 egg tray 8640
Trolley Number 6
Max Power (KW) 5.6 / 4.4
Control System DC II Touch control system, 7” LCD display, all parts big brands
Heating Electric heating system
Cooling Water cooling system
Humidity Nozzle Sprayer
Electricity 380V/50HZ, 3 phase (other elecricity also available)
CO2 Included
Power Saving Module Optional
Egg turning Pneumatic by compressed air, every trolley comes a cylinder
