Introduction

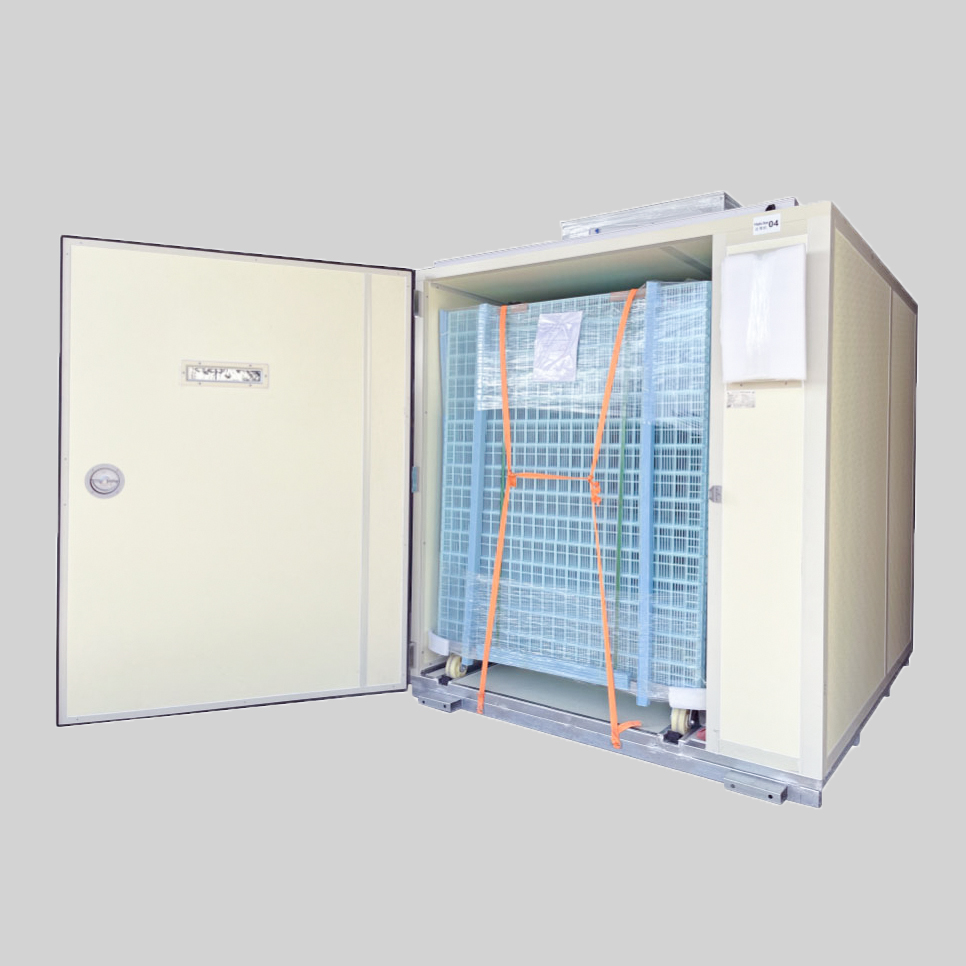

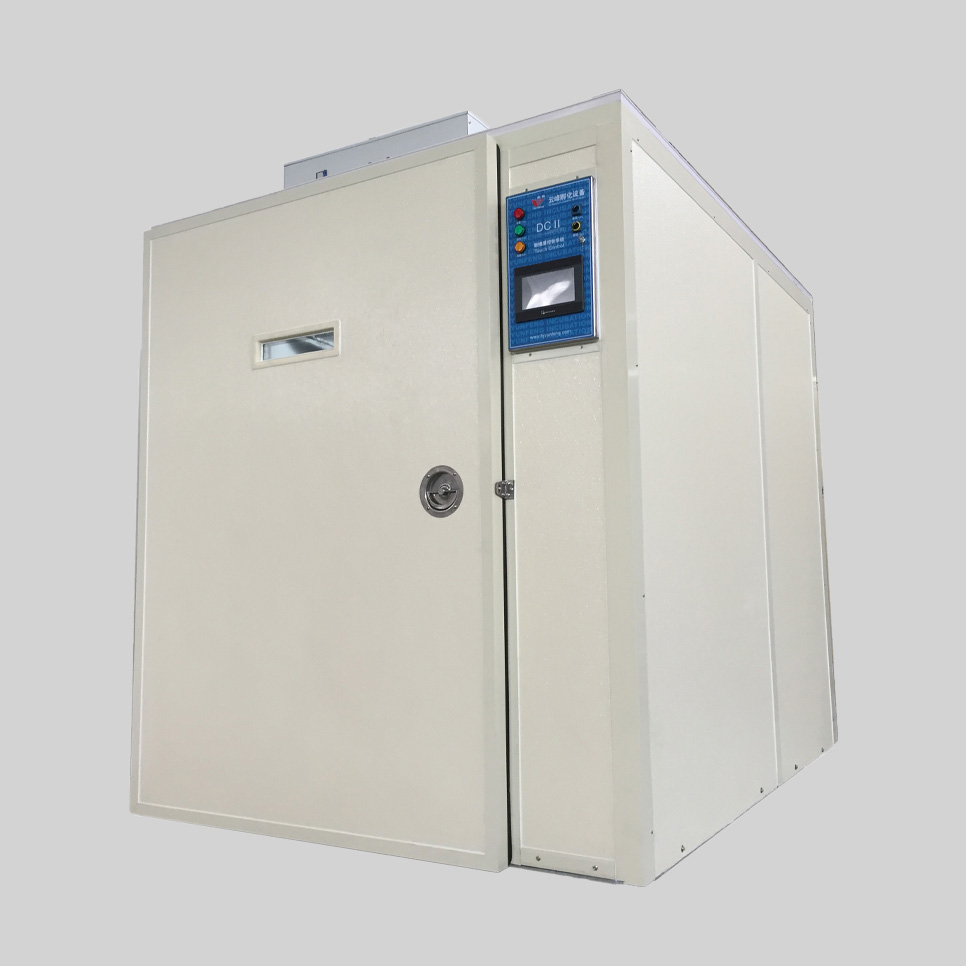

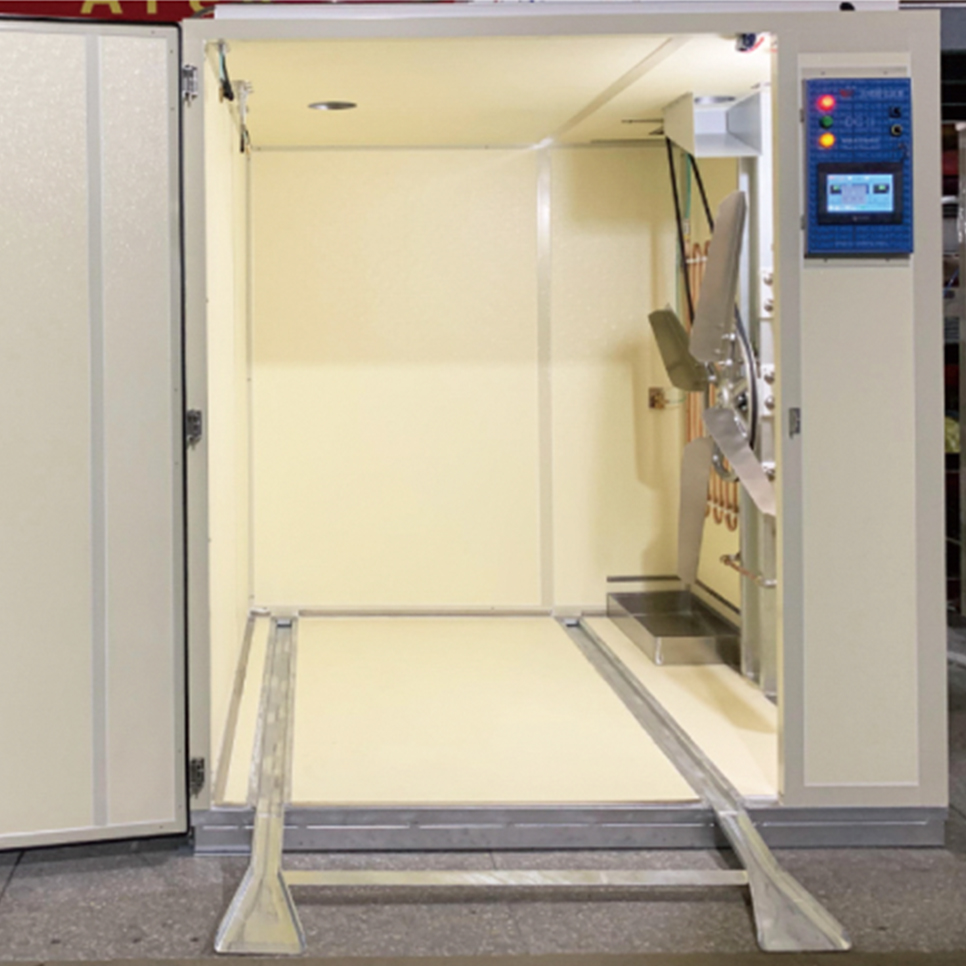

This machine is specially designed for small international customers. Three machines of this model can be loaded inside one 20ft container. And it is fully assembled in factory,so that it is free from installation. This machine can be used either single-stage or multi-stage.Customers can use immediately after receiving. What’s more this machine only use 220V single phase electricity, it can be obtained more easily than the 380V 3 phase electricity required by other large machines. So this machine is the best choice for starters.
Easy operation with powerful functions
- Touch control screen with icons enables easy operation all the time.
- A variety of world main languages, users can change according to their requirement.
- Parameters programmable can meet the requirement of eggs in different days.
- Three level passwords management, giving different rights to workers and management. Advanced settings can be realized with password permit.
- Pneumatic egg turning system, reliable, and easier cleaning than mechanical egg turning system.
Model | DF120 setter | DC120 Hatcher |
Capacity Chicken egg | ||
42 egg tray | 12096 | 12096 |
Capacity Duck egg | ||
30 egg tray | 6480 | 6480 |
Capacity Quail egg | ||
442 egg tray | 21200 | 21200 |
Trolley Quantity | 2 or 4 | 2 or 4 |
Max Power (kW) | 3.6 | 3.6 |
Dimension (mm) | W2150xD1750xH2200 | |
Control System | DC II Touch control system; standard 7” LCD display; | |
Heaters | Electrical heater | |
Cooling | Air cooling /Water cooling(optional) | |
Egg Turning Method | Pneumatic by compressed air | |
Fan frequency control | Optional (For energy saving) | |
Humidification | Nozzle Sprayer | |
Electricity | 380V/50Hz,3 phase (other electricity standard also available) |
