Setter Tray/ Hatcher Basket

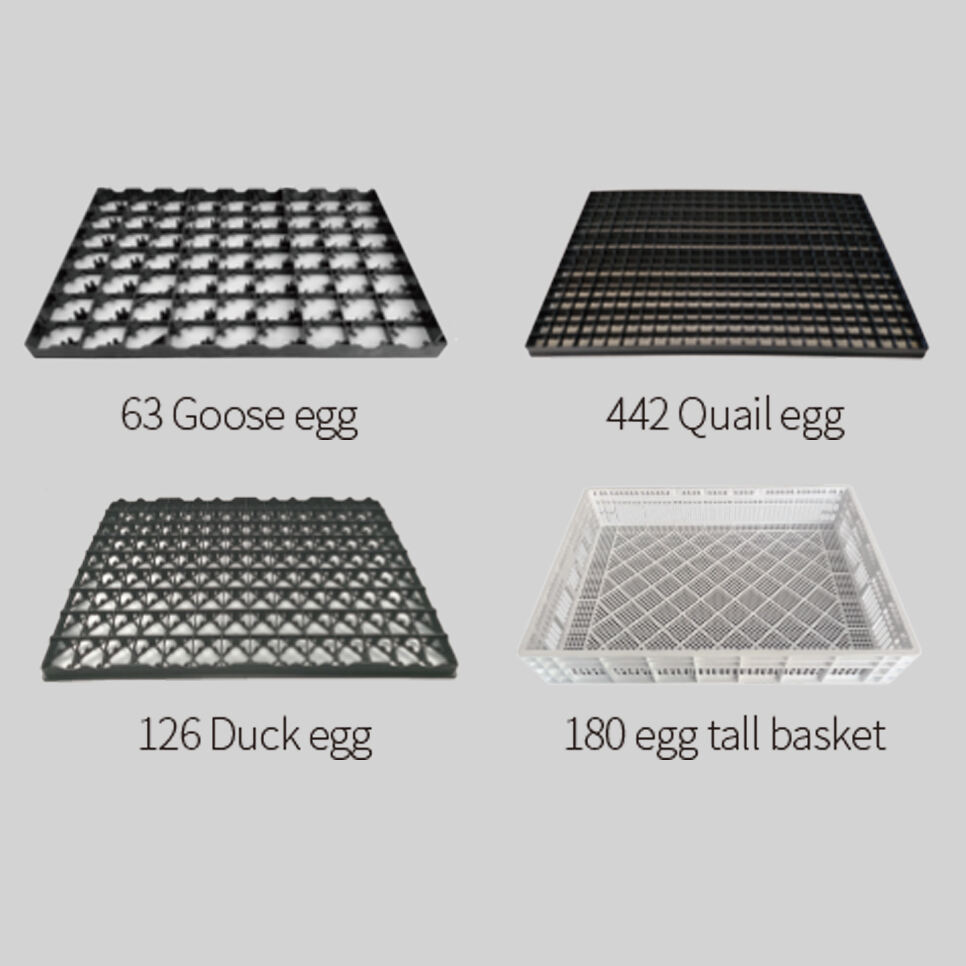

Technical specifications for setter tray of Sline

Tray Number	Egg Capacity/Egg Type	Dimension (mm)	Trolley Tier/ Capacity
PFJ15001	150 hen eggs	730x500x37	16/4800
PFJ15002	150 hen eggs	730x500x37	16/4800
PFJ08402	84 hen eggs	502x370x36	16/5376
PFJ16201	162 hen egg tray	732x505x37	16/5184
PFY12601	126 duck/turkey eggs	750x500x42	12/3024
PFA44201	442 quail eggs	750x500x32	18/15912
PFE06302	63 goose eggs	750x500x38	14/1764

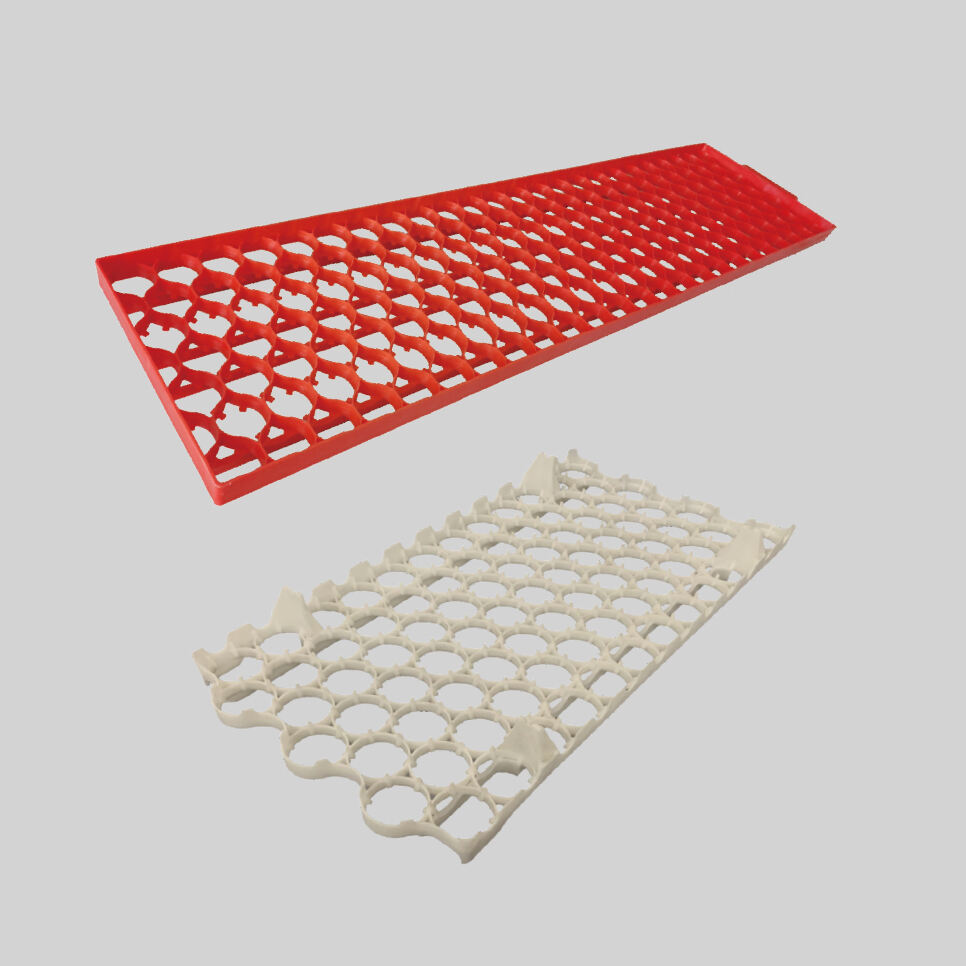

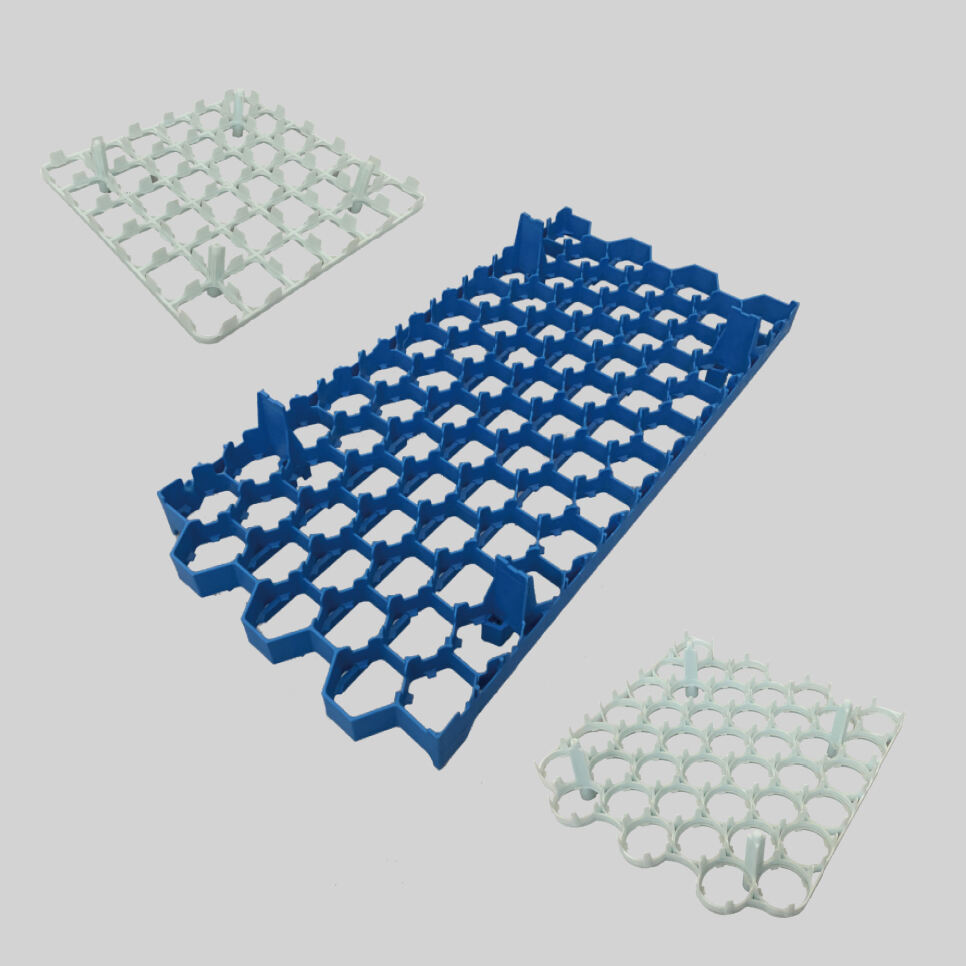

Technical specifications for egg tray of Tunnel Incubator

Tray Number	Egg Capacity/Egg Type	Dimension (mm)	Trolley Tier/ Capacity
PFJ04202	42 hen eggs	30829375	15/7560
PFJ04203	42 hen eggs	30629073	15/7560
PFJ03601	36 hen eggs	29029074	15/6480
PFJ08401	84 hen eggs	59529576	15/7560
PFJ07701	77 hen eggs	69029580	15/6930
PFJ06301	63 small hen eggs	37329073	15/8505
PFJ03001	30 duck/turkey eggs	30829084	12/4320

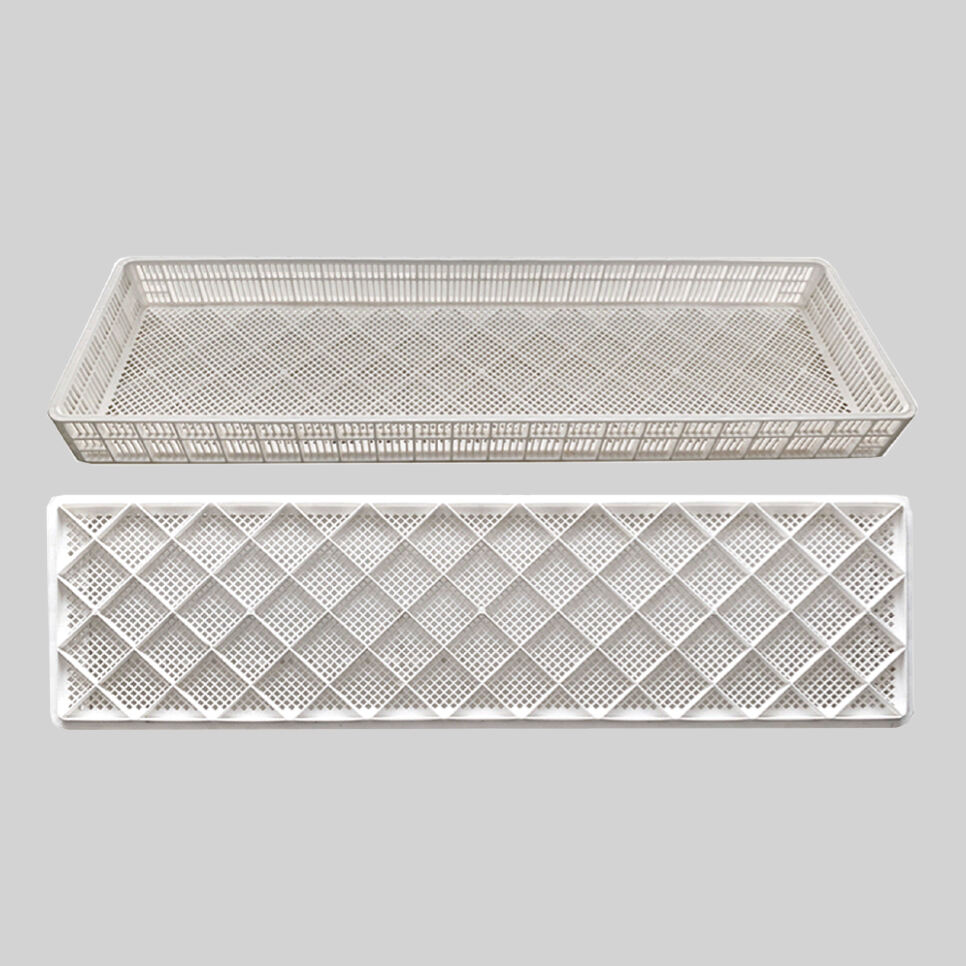

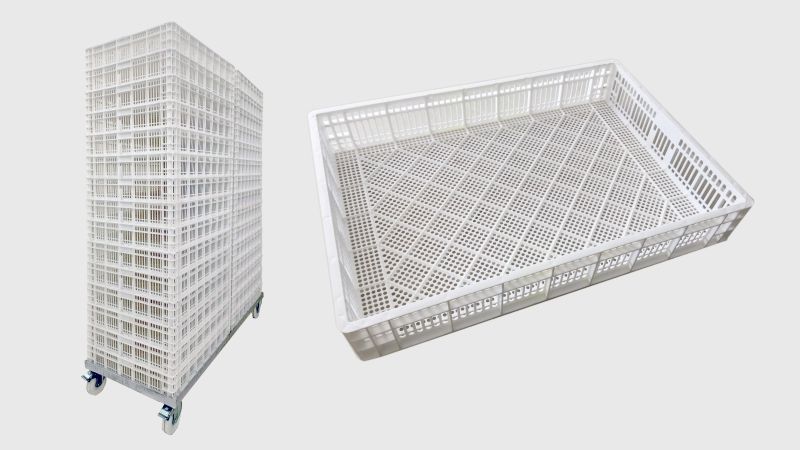

Technical specifications for hatcher basket

Model Number	Application	Material	Dimension (mm)	Weight

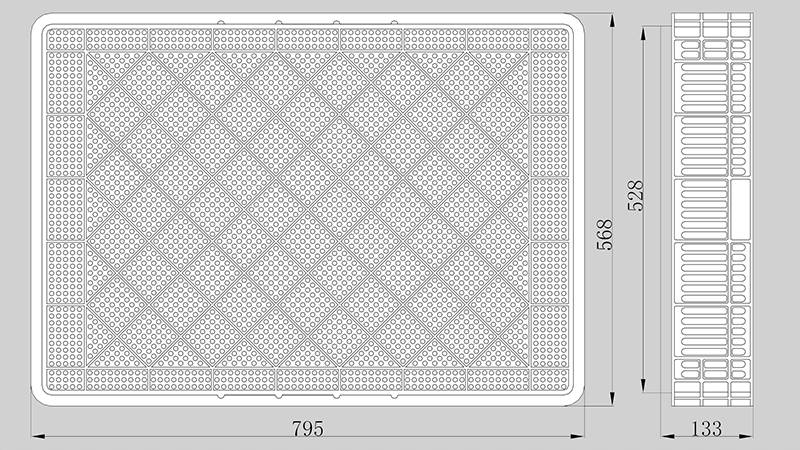

PCJ15002	Chicken, Quail, Duck, Turkey	Durable plastic, mainly virgin polypropylene (PP)	L795xW568xD133	2.8kg
PCJ18002	Duck, Turkey, Goose	Durable plastic, mainly virgin polypropylene (PP)	L795xW568xD155	3.0 kg
PCJ16802	Chicken, Quail, Duck, Turkey	Durable plastic, mainly virgin polypropylene (PP)	L1295xW375xH117	2.9kg

Benefits & Features

Different kinds of egg trays, designed to allow uniform airflow around the eggs during whole incubation process. Egg cells proper designed to accommodate larger eggs.
Hatcher baskets are designed with robust and strong structure, and maximized holes around the baskets for better air ventilation for the day old chicks inside.
Both setter trays and hatcher baskets are made of virgin durable plastic materials, for longer working life.
