Day old chick vaccinator

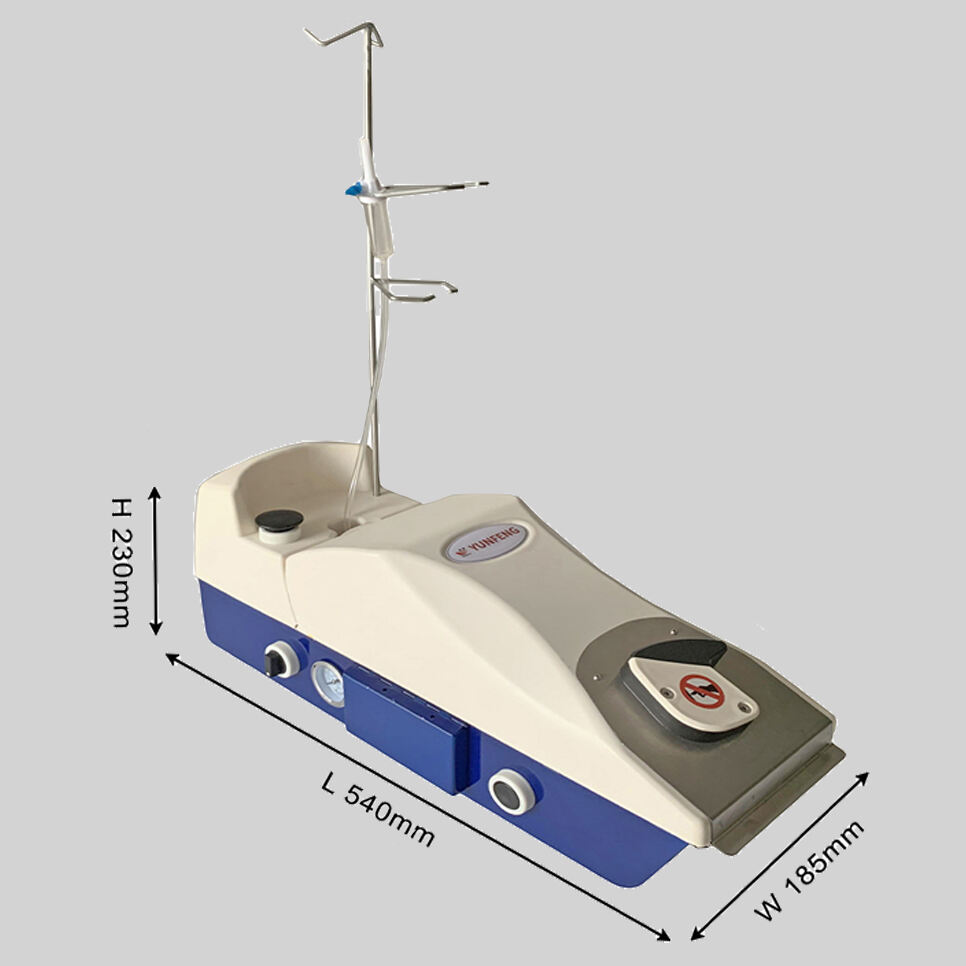

Technical specifications

Vaccines and their immune methods for DOC at hatchery

Benefits

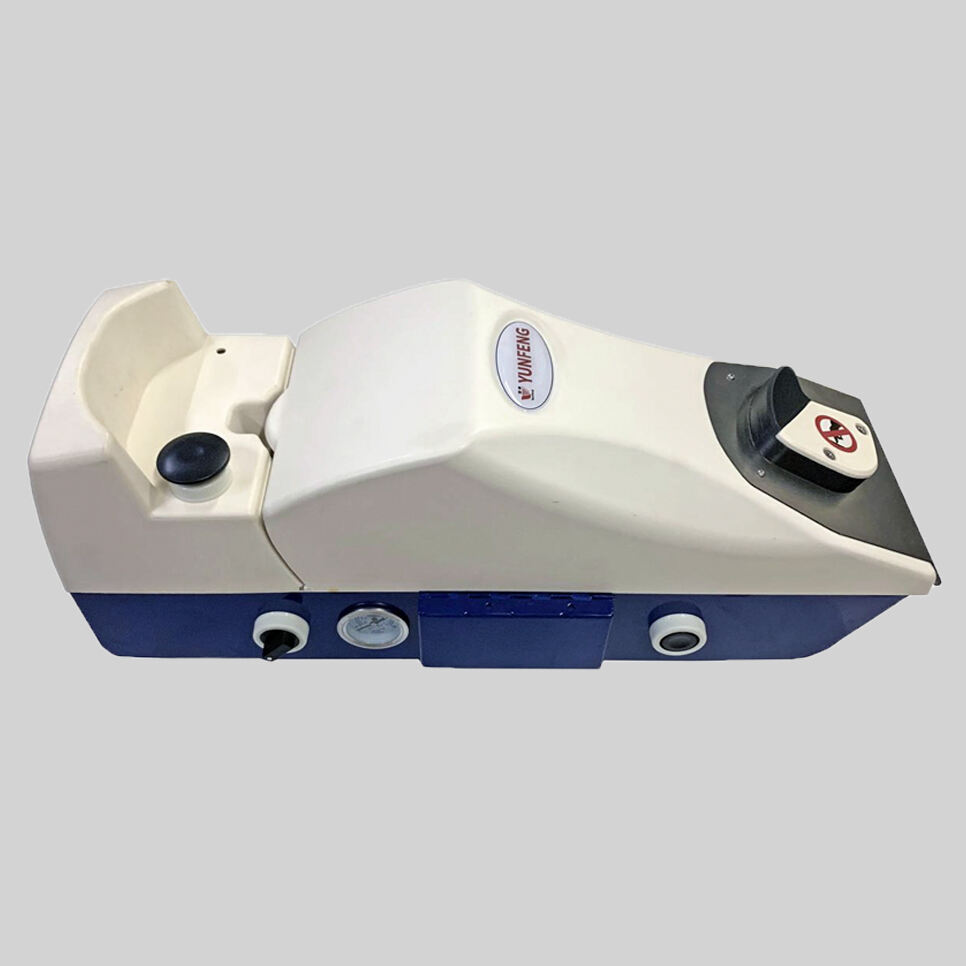

This machine is made for a quickly and safely vaccine injection work for day old chicks, or ducklings. Models for single or double injectors available that can inject one kind of vaccine or two kinds of vaccines by one time injection.
Injectors are designed with counting functions, and no need to use chick counting system anymore when using this chick vaccinator.
This day old chick vaccinator is ergonomically designed, efficient and comfortable for operators.
Only compressed air needed, no need electric power, and this makes the chick vaccination work much more convenient.
The vaccinator is designed with optimum hygiene, easy to clean.

How It Works

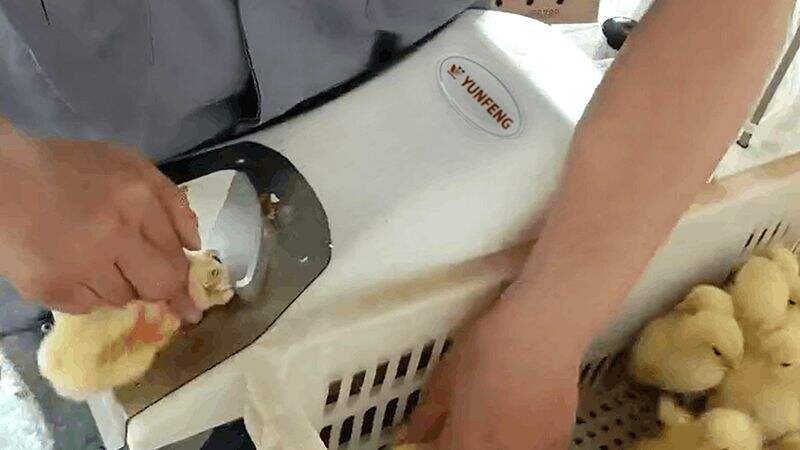

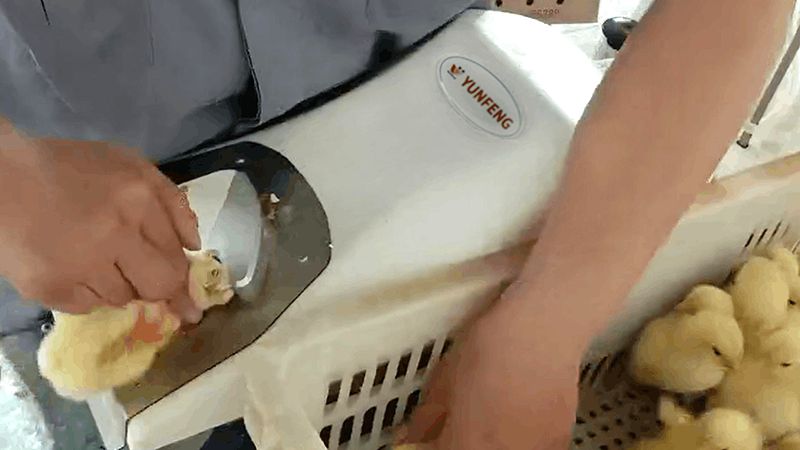

Place the day old chick laying on its limiting position, with the head touching the top part of the limiting position.
Fix the entire chicken neck with several fingers, press the chick to touch the switch behind the chick.

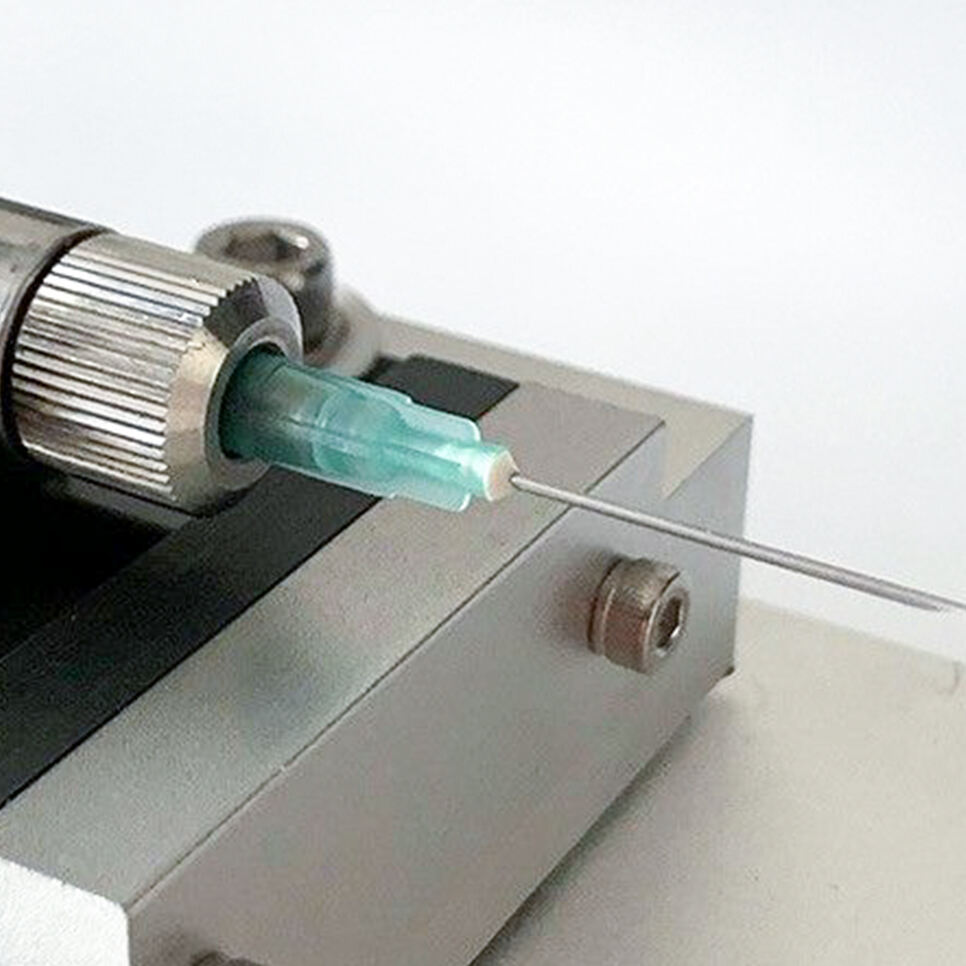

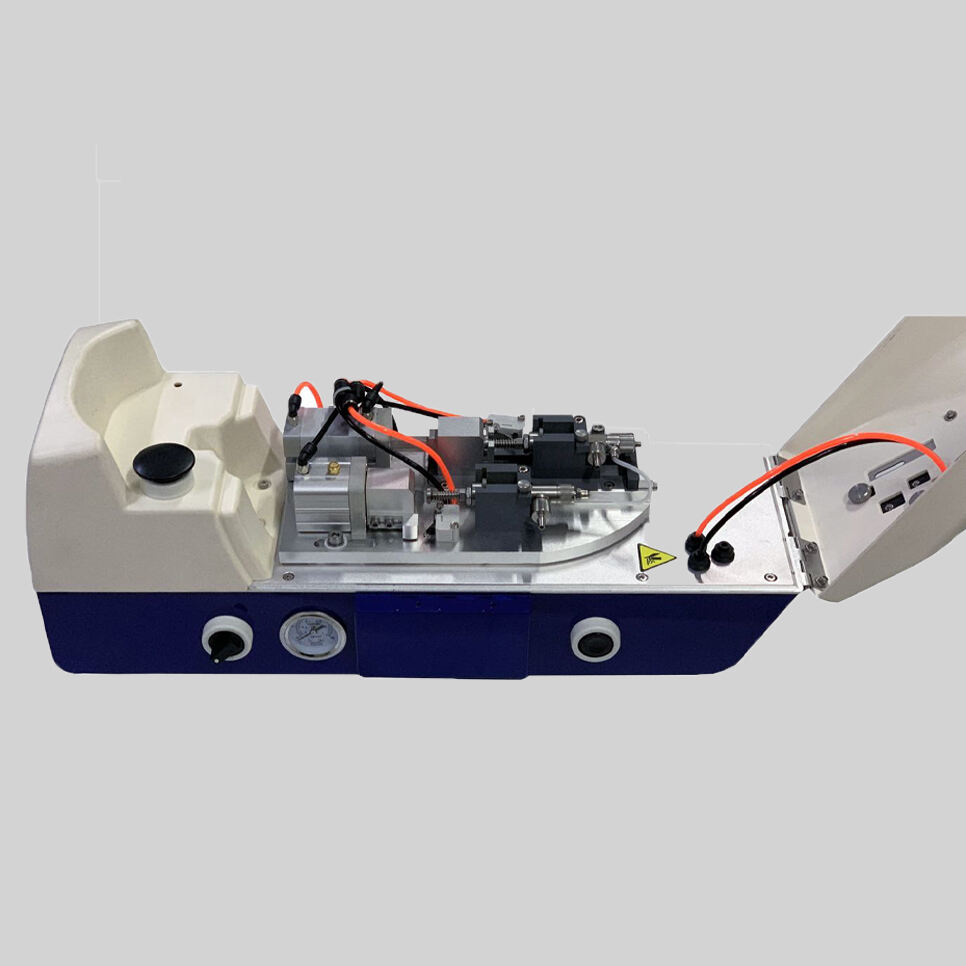

The pneumatic power will push the needle and inject vaccine into the neck of the day old chick.
After one hundred of chicks injected, the injector will give a signal to remind the worker to change a chick box.
