Vaccine incubators

Technical specifications

Model	XFV-90720	XFV-60480	XFV-58320S1
Capacity (42 Egg tray)
42 egg tray	90720	60480	58320
Trolley Qty	12	10	9
Power (kW)	11.2	7.9	7.7
Control system	DC II Touch control system, 7 inch screen, main parts from international brands
Heating	Electrical heater
Cooling	Water cooling system
Humidification	Spray nozzle humidifier
Electricity	380V/50Hz,3 phase (other electricity standard also available)
Tray type	36 / 42 / 72 or 150 egg tray and other customization trays
Dimensions(mm)	6000x2560x4000	4200x2560x3650	4880x2560x4000

Benefits

Yunfeng has started producing large scale vaccine incubators since 2004. The current equipment have been widely used in the production of human influenza vaccine, animal influenza vaccine, and a big variety of other vaccines, too.
In these incubators, fertile eggs will be incubated for some days, and then scientist workers will inject virus into the chicken embryos, and let them develop in the embryos, and harvest virus and kill them to get vaccines after some days. The whole process is more complicated involving a lot of other process and equipment, like inoculation equipment and harvesting equipment etc.

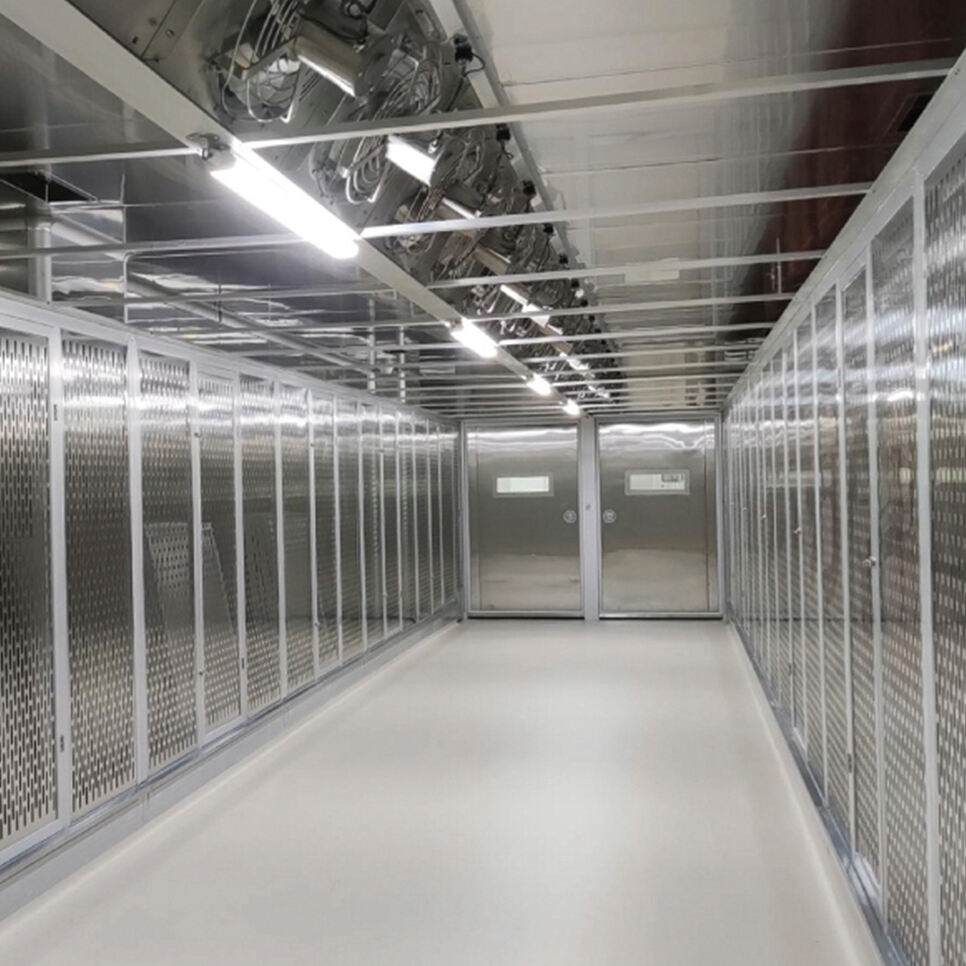

The vaccine incubator wall panel, inside structures, and trolleys are usually made of SUS304 / SUS316 stainless steel materials according to customers' higher level requirements.
The sizes and capacities of the vaccine incubators are usually customized according to costumer's capacity and room sizes.
