Chick vaccination carousel

Technical specifications

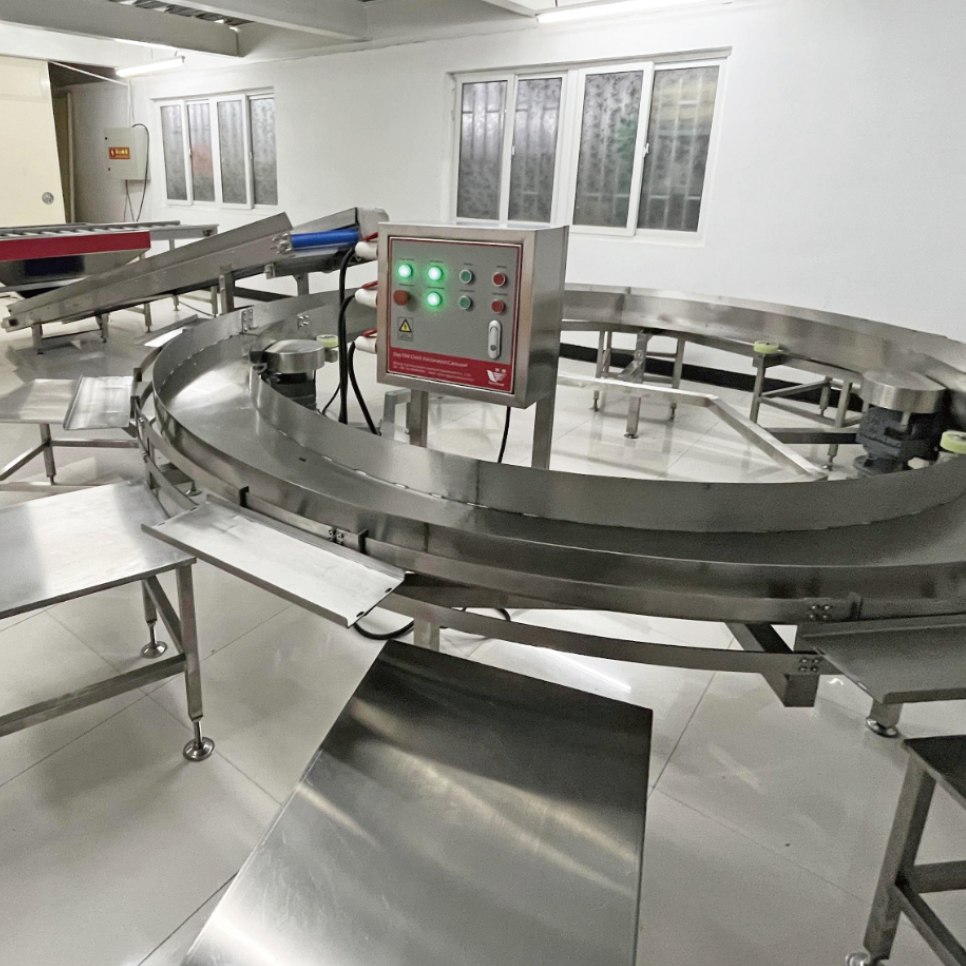

Vaccination Carousel Without Chick Box Platform

Capacity (Estimated)	3,000-3,500 chicks/hour/Person
Working Stations	4 stations	6 stations	9 stations	12 stations	14 stations	16 stations	18 stations
Diameter	1.6 Meters	2.2 Meters	3.3 Meters	4.2 Meters	4.8 Meters	5.4 Meters	6 Meters
Height	Approx. 1000 mm
Material	Stainless steel SS304 (where applicable)
Optional	Two level carousels are optional for larger models.

Note: Chicks after vaccinated will be sent to the next process.

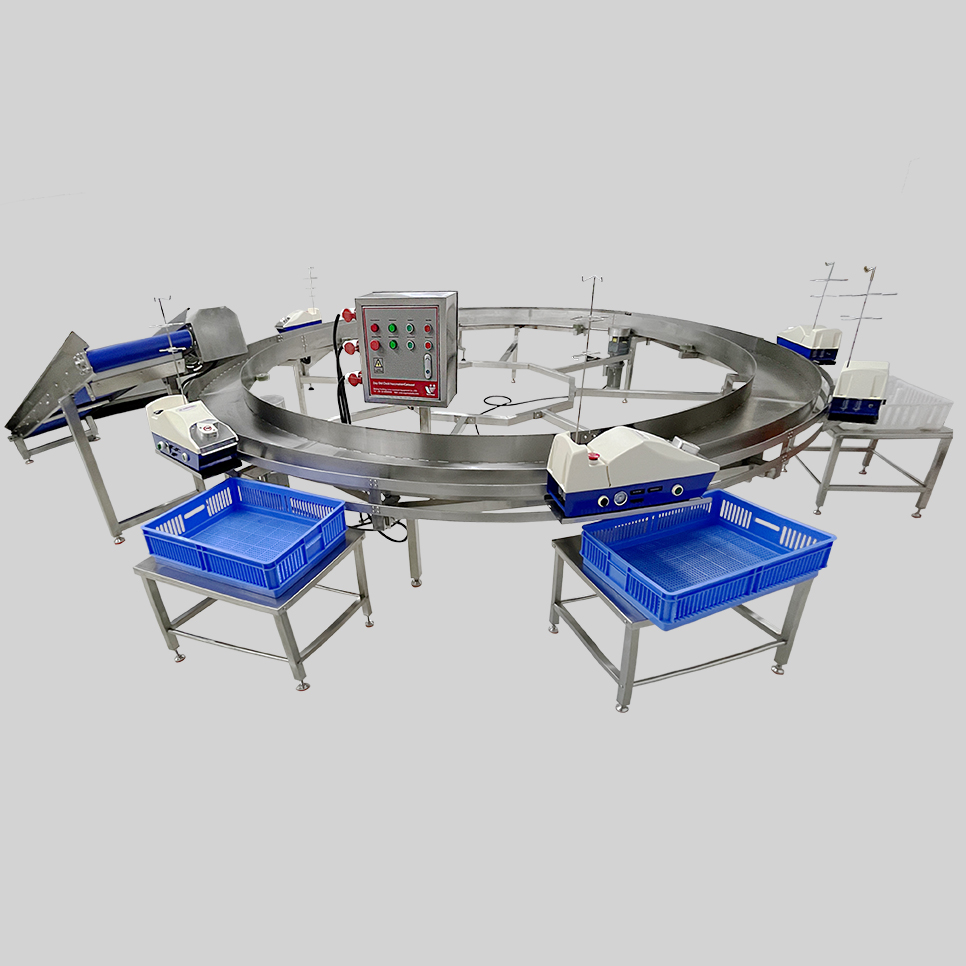

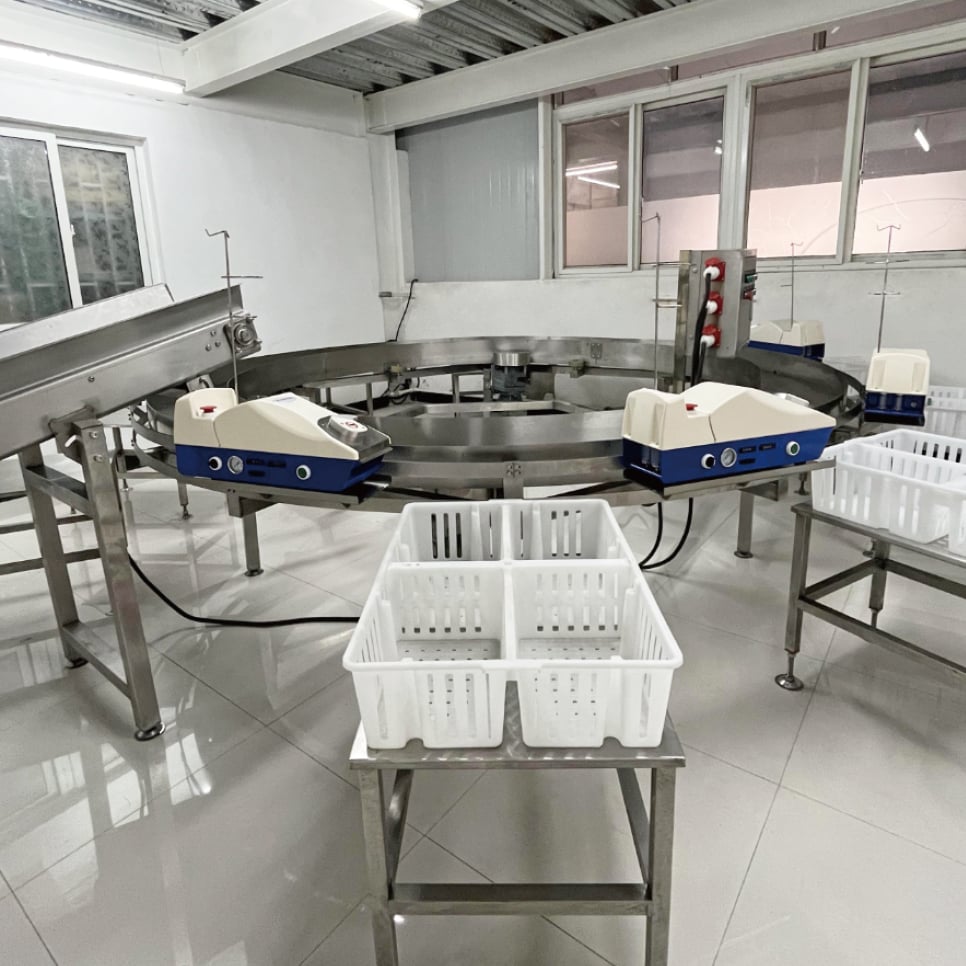

Vaccination Carousel with Chick BoxPlatform

Capacity (Estimated)	3,000-3,500 chicks/hour/Person
Working Stations	4 stations	6 stations	8 stations	10 stations	12 stations	14 stations	16 stations
Diameter	1.6 Meters	2.4 Meters	3.2 Meters	4.0 Meters	4.7 Meters	5.5 Meters	6.3 Meters
Height	Approx. 1000 mm
Material	Stainless steel SS304 (where applicable)

Note: Chicks after vaccinated will be dropped chick boxes at the station.

Features

This chick vaccine carousel is for working with automatic pneumatic vaccinators, single or double injectors.
Vaccinated chicks can either be placed into chick boxes, or by a chute and chick belt transported to the next process.
The chick carousel is ergonomically designed, efficient and comfortable for operators.
It is made with SS304 material where applicable, for optimum hygiene, and easy to clean.
Different size of chick vaccine carousels are available, and the size and functions can also be customized.

How It Works

One slowly rotating round conveyor made of stainless steel, rotating on a frame.
Chicks are transported by a belt to this rotating conveyor.
Operator take out chicks from this round conveyor and put chicks continuously to the pneumatic vaccine injecting machine.
Chicks are injected with one kind or two kinds of vaccines depending on the automatic vaccinator type.
Chicks will be counted by the vaccinator, and slide by a slideway into chick boxes, and taken away. Alternatively, vaccinated chicks will be collected and drop to a chick belt, and move to the next process, usually an automatic chick counting and packing system.
