Vacuum egg lifter

Technical specifications

Model	Egg Capacity	Arrangement	Dimension (mm)
V6A	6 hen eggs	6 in line	28060190
V10A	10 hen eggs	2x5, Matrix	260100190
V12A	12 hen eggs	2x6, Matrix	280115190
V12B	12 hen eggs	2x6, Matrix to honeycomb	280180190
V15A	15 hen eggs	3x5, Matrix	260150190
V18A	18 hen eggs	3x6, Matrix	280150190
V20A	20 hen eggs	4x5, Matrix	260195190
V24A	24 hen eggs	4x6, Matrix	280195190
V30A	30 hen eggs	5x6, Matrix	280240190
V30B	30 hen eggs	5x6, Matrix to honeycomb	280240190
V36A	36 hen eggs	6x6, Matrix	280295190
V42A	42 hen eggs	7x6, Honeycomb	300300190
V42B	42 hen eggs	7x6, Matrix to honeycomb	280330190
V54B	54 hen eggs	9x6, Matrix to honeycomb	280420190
V10DA	10 duck/turkey eggs	2x5, Matrix	280110190
V20DA	20 duck/turkey eggs	4x5, Matrix	280210190
V20DB	20 duck/turkey eggs	4x5, Matrix to honeycomb	280220190

Benefits

The vacuum egg lifter can help to move many eggs from farm egg tray (pulp or plastic) to setter tray at a time, more efficient than moving eggs by hand.
It is also used for table eggs, from egg tray to egg grading machine, or between different kinds of egg flats or trays.

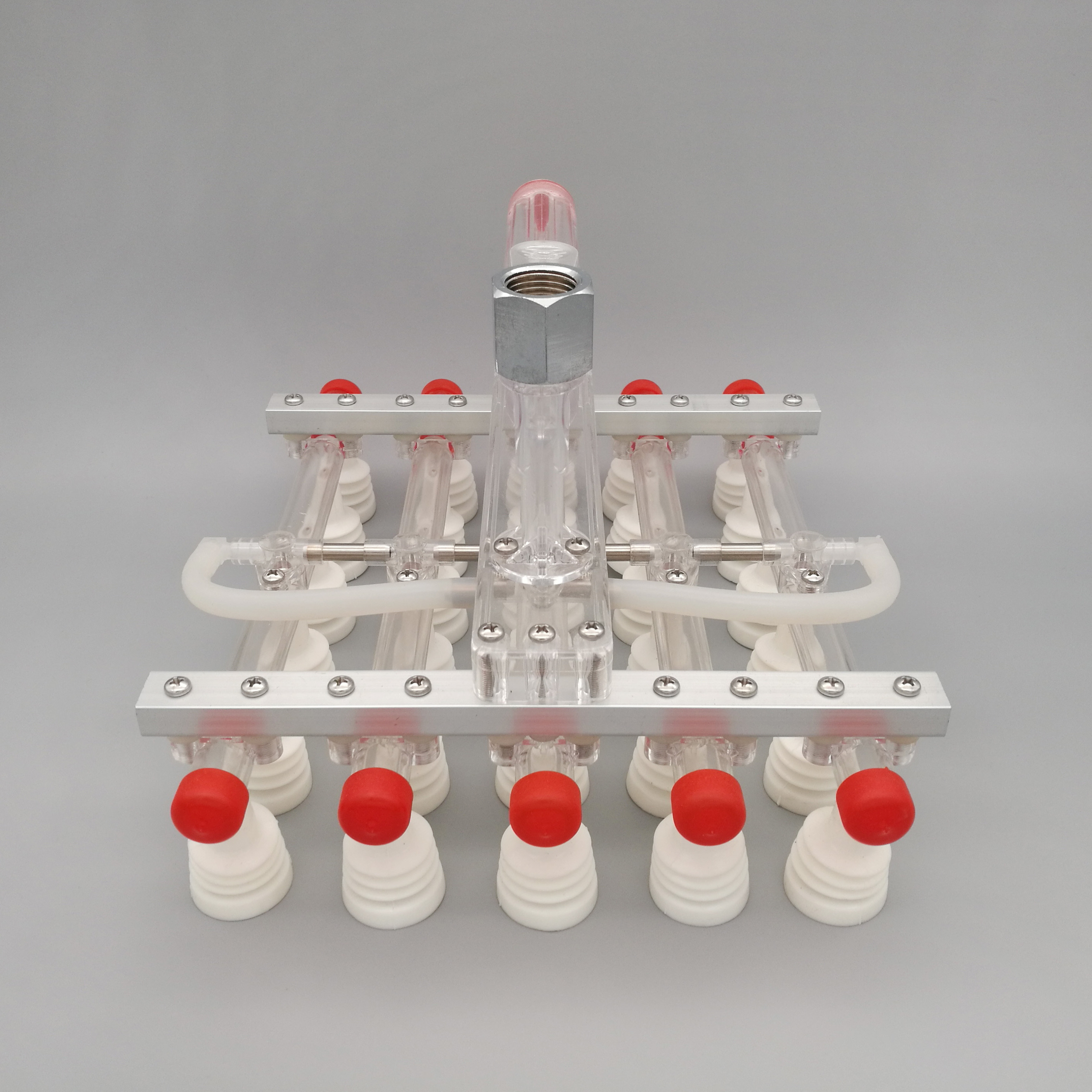

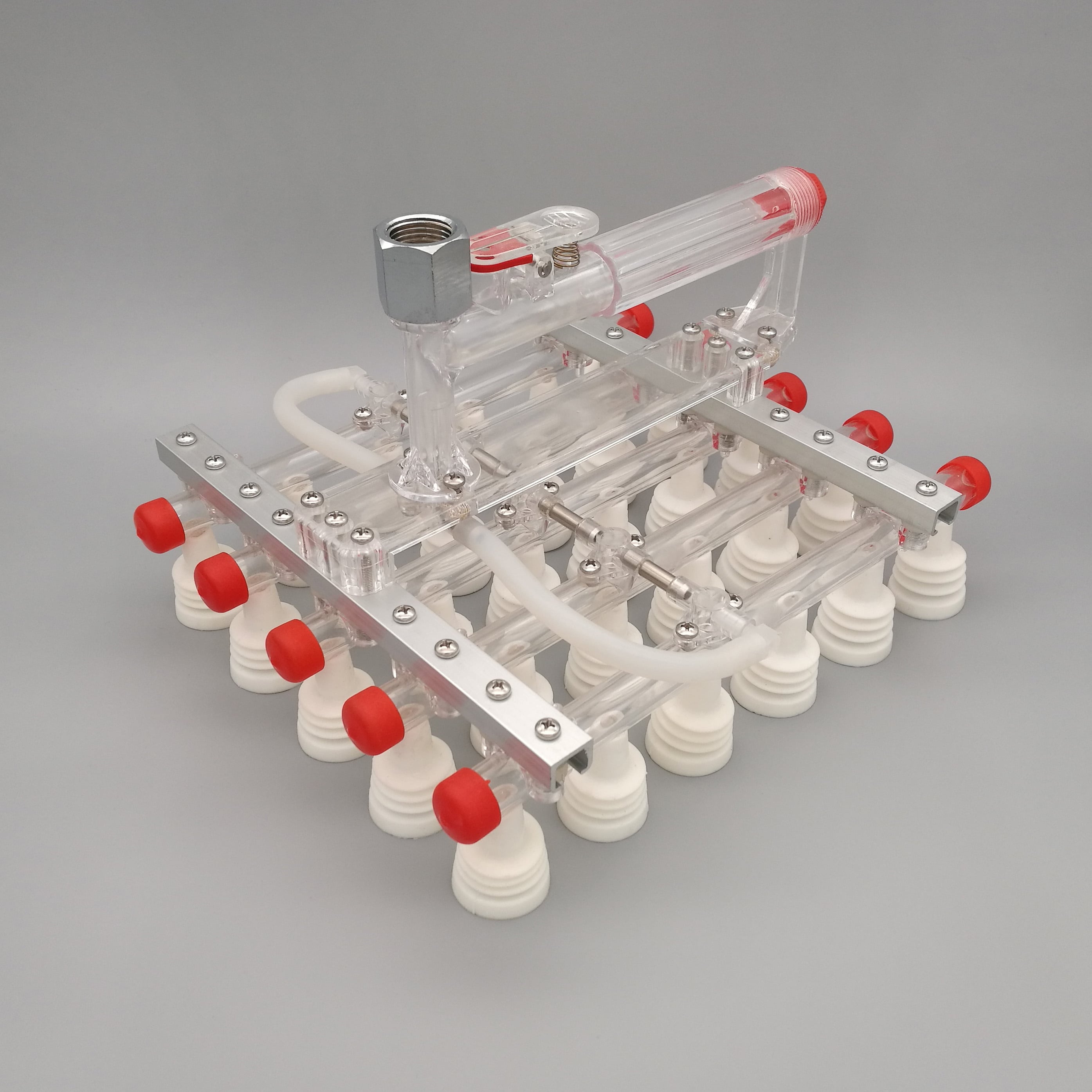

Our egg lifters are constructed with poly-carbon material, a kind of clear plastic with complete visibility for easier cleaning and troubleshooting, sturdy and durable.

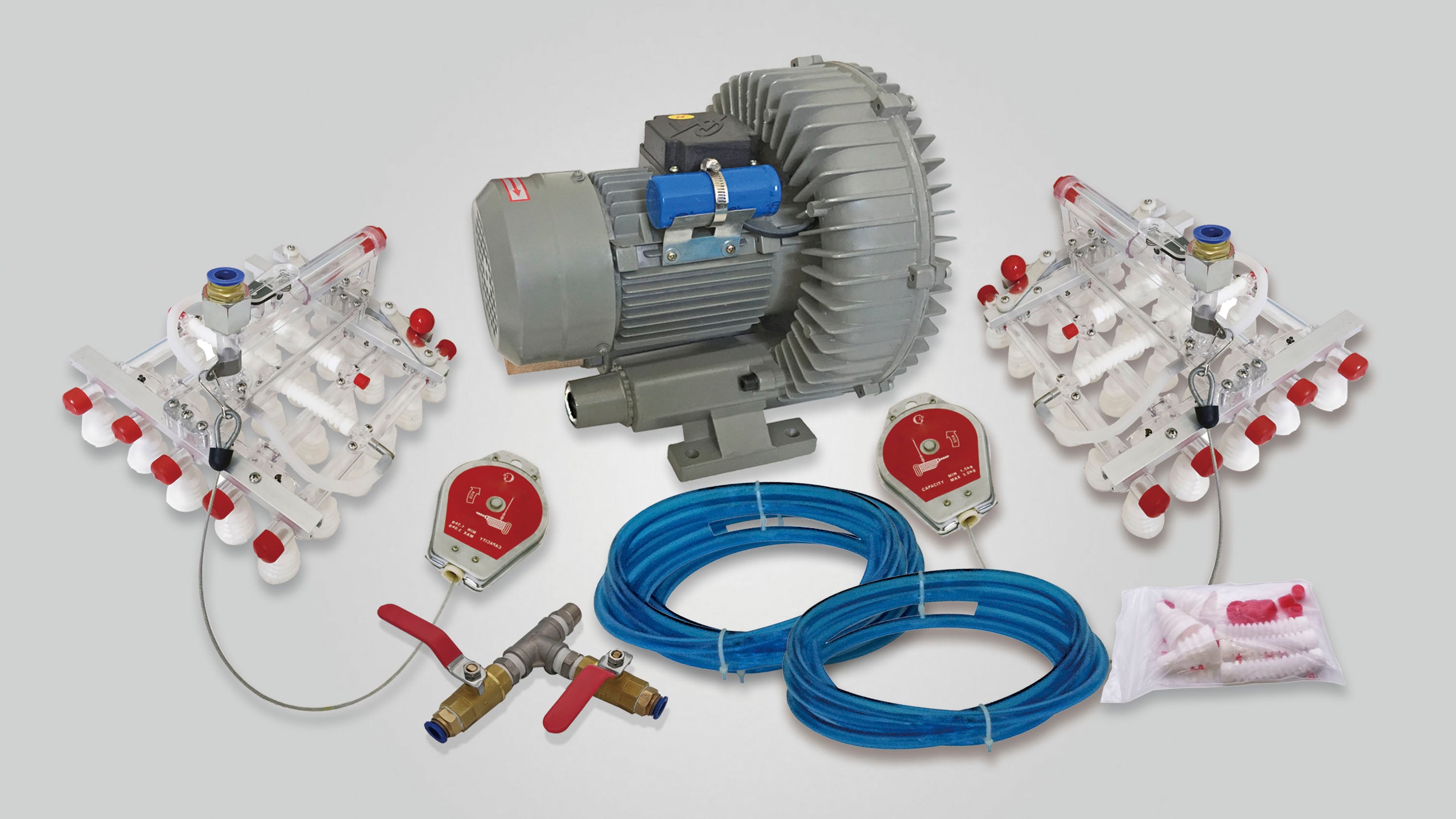

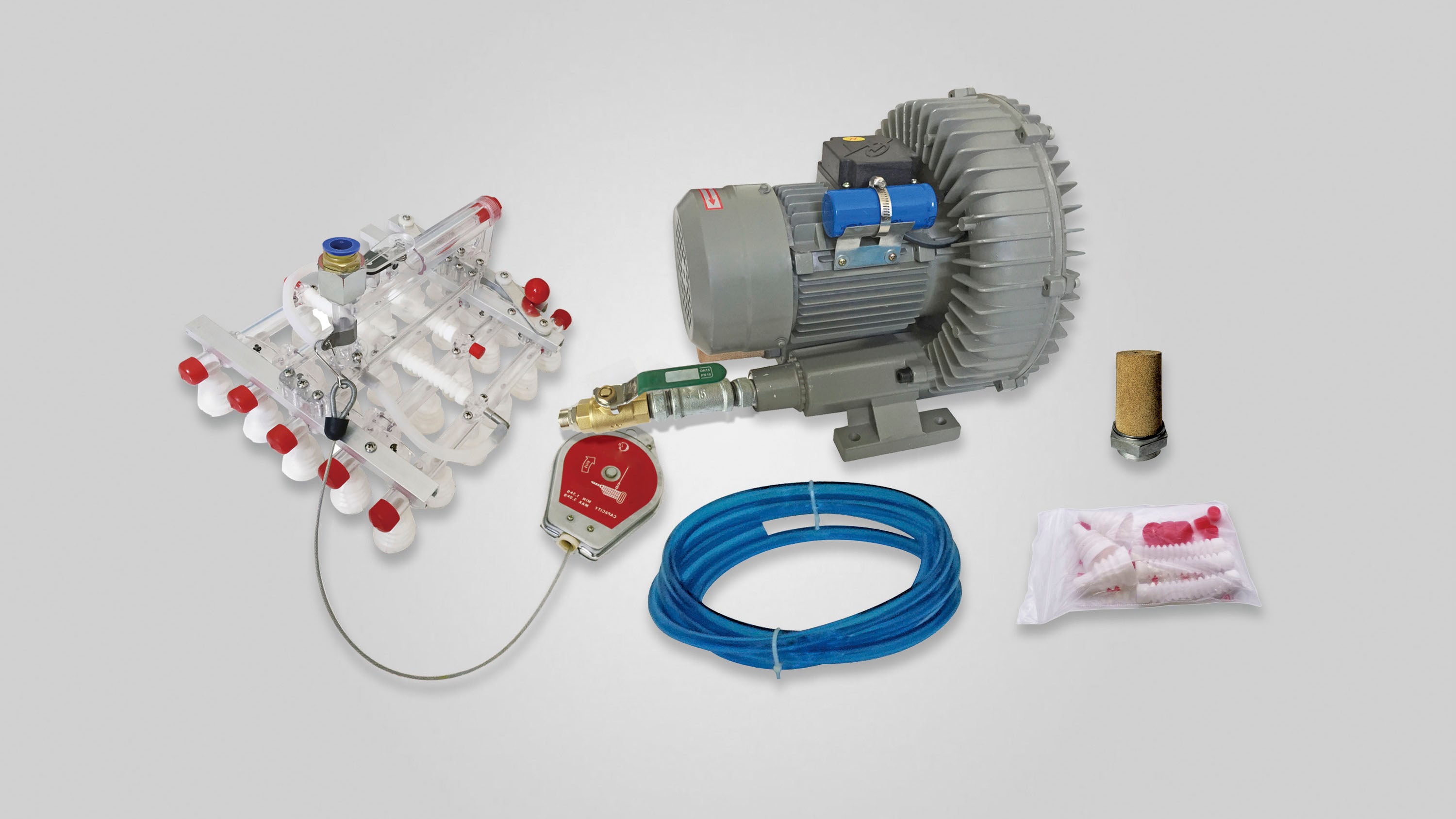

One vacuum pump can work with 1 or 2 vacuum lifter heads. It is also workable with compressed air, if no vacuum pump, but will need a vacuum converter.
The egg lifter's air flow is well designed, and workable even when it is not full loaded (when some of the egg suckers without eggs)
There are a variety of different models of vacuum egg lifters, from 5 eggs to 54 eggs per egg lifter head, for both matrix and honeycomb structured setter trays.
Models for chicken eggs and duck/turkey eggs are available.

How it works

Connect the egg lifter with vacuum pump, or compressed air through a vacuum converter.

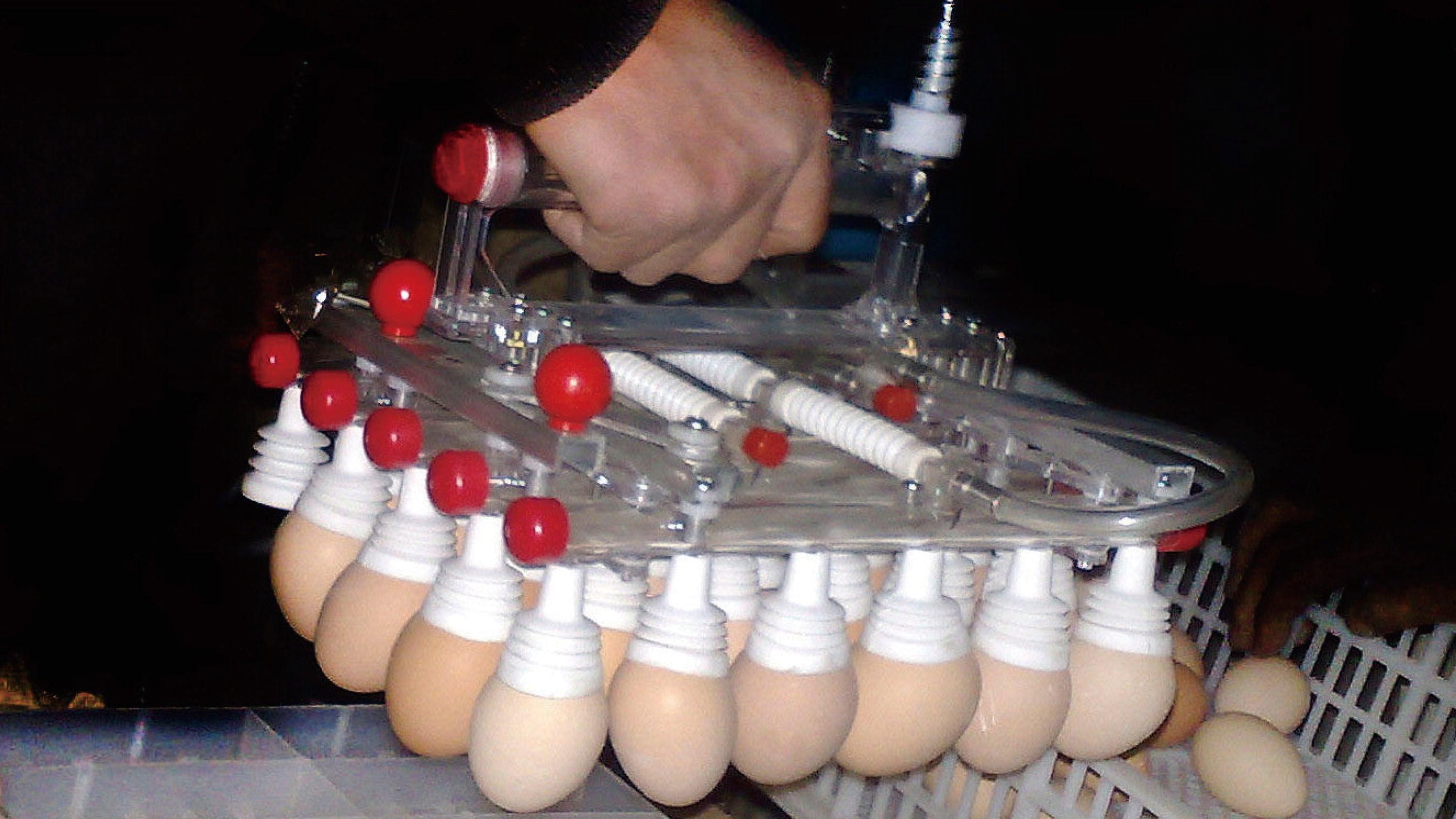

Put the egg lifter head over the egg tray, and each vacuum cup facing one egg. Push down the egg lifter head, then the eggs are sucked to the egg lifter cups.
Lift the egg lifter head, and place it to the setter tray, or to the egg grading machine machine belt, etc.
Press the valve lever with thumb, then the eggs are released immediately.
Spring-balancer is an optional part that can reduce the strength when moving eggs.
Working table is optional for different kinds of incubator egg trays.
